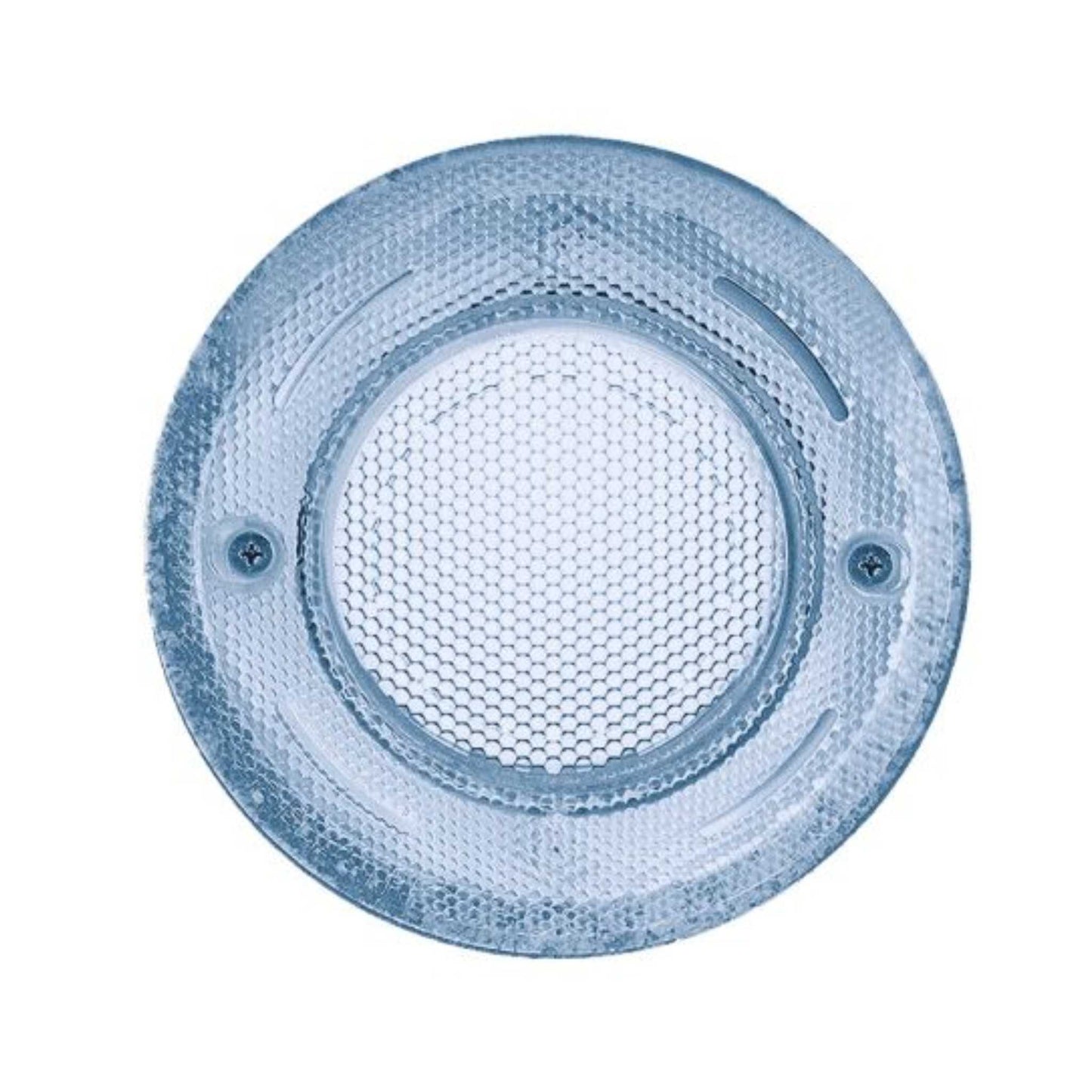

Aquaquip EVO MAX Blue W/20m Lead

EvoMAX offers maximum illumination whilst preserving a flush profile. It has a lens illumination surface 45% larger than Evo2. The wet-niche LED Lighting System connects to the same cable and housing as Evo2, the difference is the lens area and the fact that the one-piece diffused acrylic lens extends beyond the dress ring providing increased beam spread and side-lighting effects.

The multi-colour option features Aqua-Quip’s unique Colour Selection Palette which provides an almost limitless variety of colour possibilities and a vast array of pre-programmed scroll and flash modes.

Features:

• Super bright, energy efficient, long life
• Detachable cable for easy installation
• Stainless steel dress ring available
• Made in Australia to all relevant Australian standards and regulations
• Suitable for concrete pools and retro-fitting
• Simple installation
• Integrated Colour Selection Pallette allowing the user to choose from a variety of fixed colours and programming modes
• The entire system is extra-low-voltage ensuring safety at all times

Specifications:

• Nominal Supply Voltage: 12V AC 50/60 Hz
• Voltage Tolerance: +20%, -20%
• Protection Rating: IPX8 (to 2.0m depth)
• Power Consumption: White, blue and green = 25 VA
• Power Consumption: Spectrum III Multi Colour = 30 VA maximum
• Light Output (typical): White–985 lumens, blue-300 lumens, green-595 Lumens
• Fault Protection: Power-cycle "run dry" thermal cut out. Voltage transient clamping

Aquaquip EvoMAX LED Pool Light Kit include:

• LED light
• 20m cable
• Quick connect plug kit
• wall housing
• transformer
