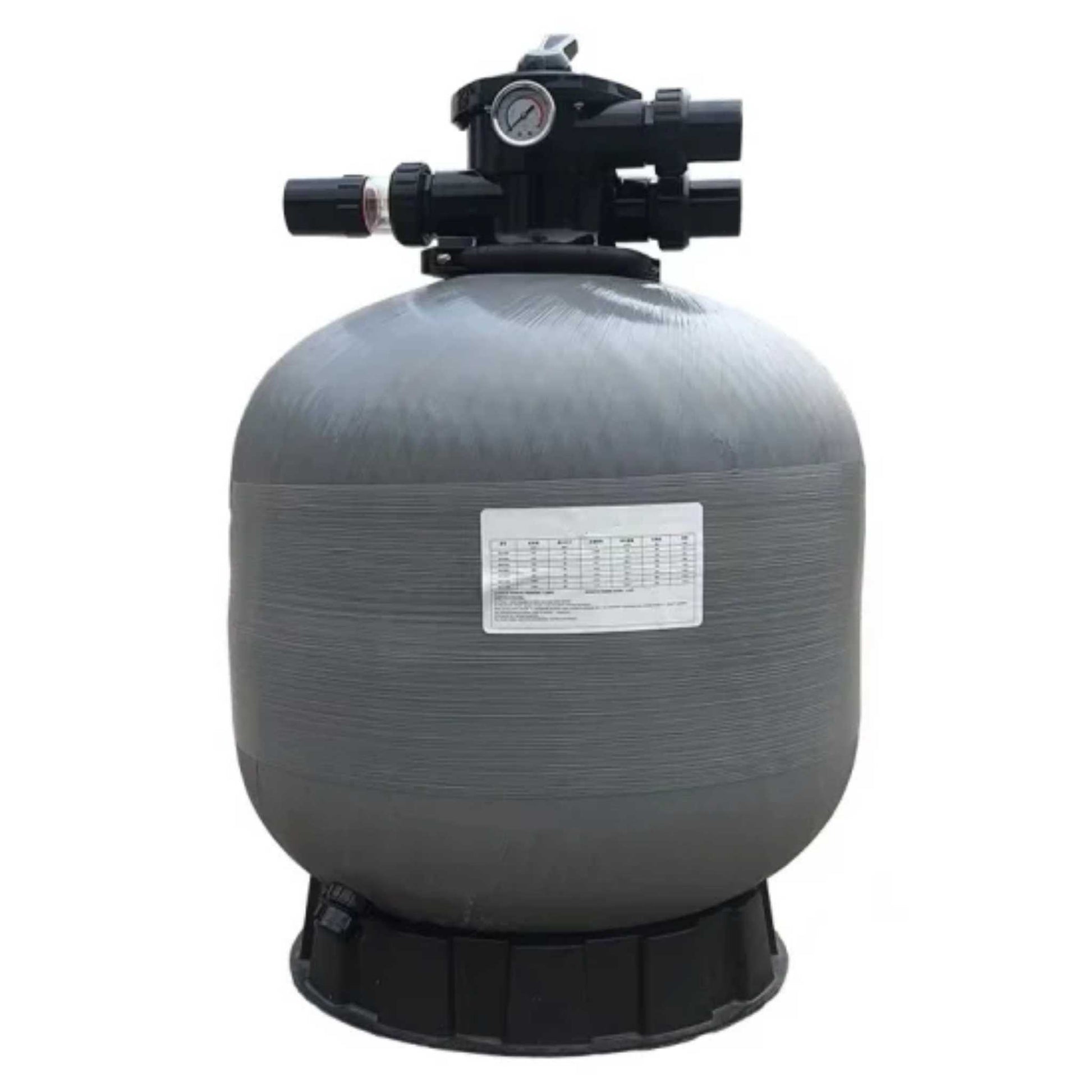

Emaux V650B 25" Media Filter 50mm

Emaux V650B 25" Media Filter 50mm

EV25B

$790.00
$902.00 $790.00
Sale Out of stock

For residential and semi-commercial pools

Bobbin-would filter manufactured by computerised fiberglass filament winding technology which provides the mechanical strength of the filter tank and its ability to withstand pressure. Bobbin winding technology ensures a durable and non-corrosive fiberglass and resin. Composites are UV resistant enabling extreme weather condition resistance and long working life without corrosion.

Features

  • Tank Material: Bobbin-wound Reinforced Fiberglass
  • Max Operating Pressure: 36 psi / 2.5 bar
  • Max Temperature: 43°C (109°F)
  • Equipped with: 6-way Clamp/Bolt style Multiport Valve (1.5”MPV01, 2”MPV02, 2.5”MPV12), Pressure Gauge, and Piping Kit
  • Filtration System: Lateral system
  • Connection Type: Universal Standard of Union Connection
  • Suggested Size of Media: 0.5-0.8 mm

Product Details:

Code
(2.5 Bar) 		Code
(4 Bar) 		Model Filter Area (m2) Valve Connections Max Flow Rate Sand needed (kg)
88010101 / V350 0.09 1.5″ / 50mm 72lpm    4.32m3/h 20
88010102 / V400 0.13 1.5″ / 50mm 108lpm    6.48m3/h 35
88010103 / V450 0.16 1.5″ / 50mm 135lpm    8.10m3/h 45
88010104 / V500 0.22 1.5″ / 50mm 185lpm    11.10m3/h 85
88010105 / V650 0.32 1.5″ / 50mm 260lpm    15.60m3/h 145
88010106 / V650(PB) 0.32 2.0″ / 63mm 267lpm    16.00m3/h 145
88010606 / V650(B) 0.32 2.0″ / 63mm 267lpm    16.00m3/h 145
88010107 / V700 0.40 1.5″ / 50mm 325lpm    19.50m3/h 210
88010608 / V700(B) 0.41 2.0″ / 63mm 336lpm    20.16m3/h 215
88010609 / V800 0.50 2.0″ / 63mm 415lpm    24.90m3/h 355
88010610 88015610 V900 0.64 2.0″ / 63mm 520lpm    31.20m3/h 470
88010650 88015650 V900(C) 0.64 2.5″ / 75mm 533lpm    32.00m3/h 470
88010611 88015611 V1000 0.79 2.0″ / 63mm 650lpm    39.00m3/h 620
88010651 88015651 V1000(C) 0.79 2.5″ / 75mm 658lpm    39.50m3/h 620
88010613 88015613 V1200 1.13 2.0″ / 63mm 860lpm    51.60m3/h 860
88010652 88015652 V1200(C) 1.13 2.5″ / 75mm 941lpm    56.50m3/h 860
88010614 88015614 V1400 1.54 2.5″ / 75mm 1155lpm    69.30m3/h 1400
View full details

Our Product Low Down

Product Specifications

Product Supplier: Emaux Water Technology

Product Code: EV25B

Learn About Emaux Water Technology

Emaux is a recognised global manufacturer and has been actively engaged in key water projects worldwide. We offer specialised products and services to swimming pools, spas, aquatic centers, water parks, aquaculture, public aquariums, water features, and water treatment projects.

Warranty

Emaux V650B 25" Media Filter 50mm comes with a 5-year pro-rata warranty on filter tank, 1-year on all other parts
