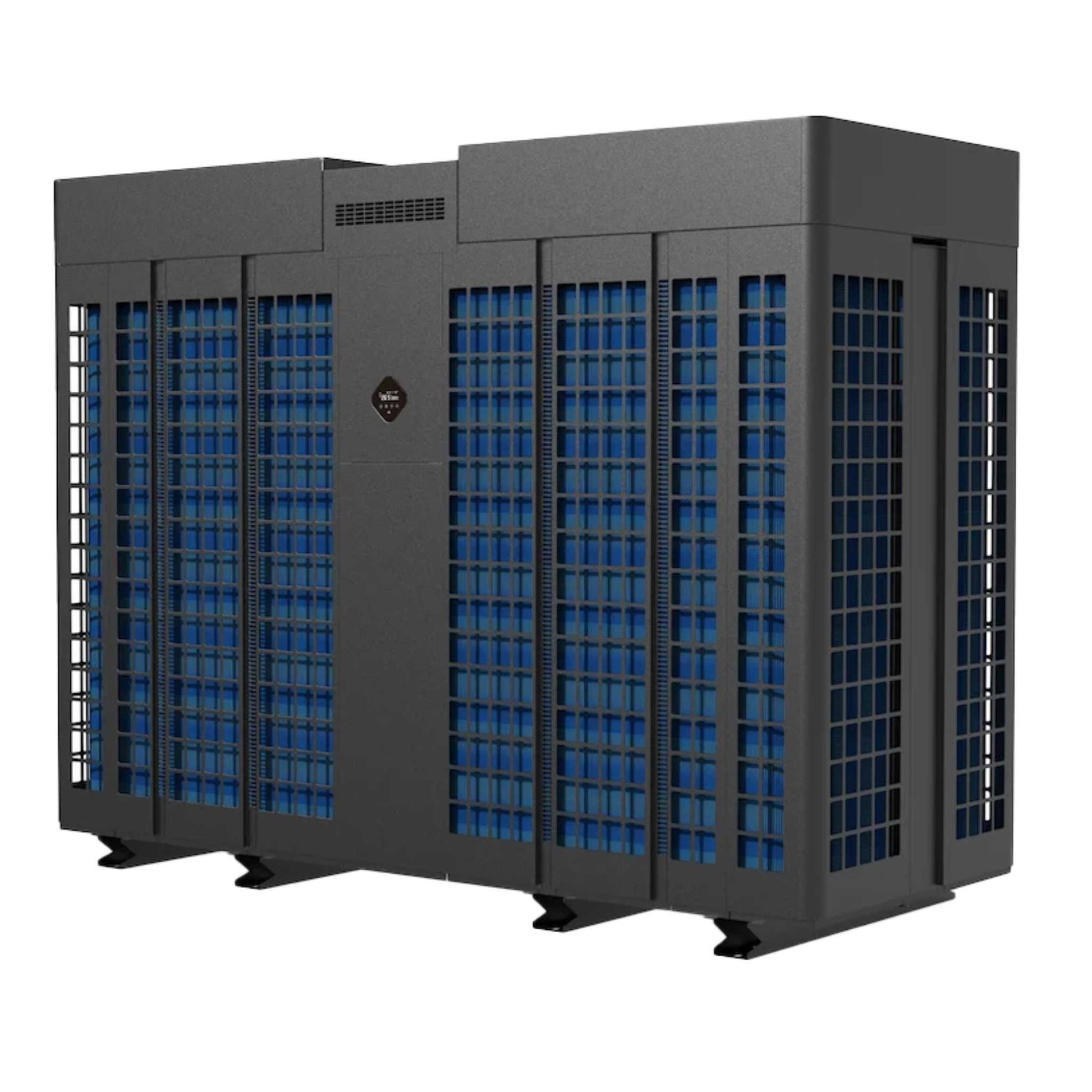

Madimack - Elite Max (60KW)
Madimack - Elite Max (60KW)
SKU:MM-EM600-AA
Couldn't load pickup availability
The Elite Max commercial heat pumps from Madimack are powerful commercial heaters have the capacity to cope with huge demands of any aquatic Swim School, hotel, resort or public swimming pool. In fact there is not an aquatic facility that these heat pumps can't service. Built with cutting edge full stepless inverter technology and climate adaptive features, with a C.O.P of 15 the Madimack commercial range of Pool Heaters keeps up all year round whilst reducing energy bills significantly on all commercial pool heating situations.
Commercial Pool Heating Guide - Elite Max EM600 60KW Heat Pump
Pool heating calculation guide for the Madimack Elite Max EM600 60KW Commercial heat pump installed on hotels, resorts, wellness centers, public pools and schools in South East Queensland.
This heater will provide pools up to 100,000lts 12 months swimming @28 Degrees without the use of a blanket.
This heat pump will run approximately 14 Hours a day on average to maintain 28 Degrees without a blanket.
Total expected running cost per annum to maintain 28 Degrees all year round @24 Cents / KWH is $2550.00 P/A.
*Heat pump run cost only does not include water pump costs*
Madimack Elite Max Series unique features:
• Extremely energy efficiency with C.O.P up to 15
• Full stepless inverter compressor and fan
• External Controller – WiFi control capatability
• Super quiet - top fan discharge - db range 55-64
• Automatic Reverse cycle defrost down to -15 Degrees C
• Environmentally friendly R32 refrigerant
• High quality anti-corrosion marine grade aluminium alloy 3003 casing
• 25 Year Warranty on heat exchanger
• 10 Year Compressor warranty
• 5 year warranty on all parts
Specifications
• 115 KW Heat output rating @ 27 degrees air and 27 degrees water
• 80.8 KW Heat output rating @ 15 Degrees air and 26 degrees water
• 15-6.5 C.O.P at 27 Degrees air
• Unit Dimensions(L x W x H) 1000 x 1110 x 1260mm
• Top Discharge
• Mitusbishi Rotary Compressor- 10 Year Warranty
• Titanium Heat Exchange – 25 Year Warranty
• 55-64db Noise Rating
• Refridgerant Type R32
• Three Phase 415v Power 20 amps Max Running current
Madimack Elite Max Commercial Series Warranty
• 25 years: Anti-corrosion warranty on the titanium heat exchanger coils
• 10 years: Compressor
• 5 Years on Refrigeration circuit
• 5 years: Parts
• 1 year: On-site Labour
